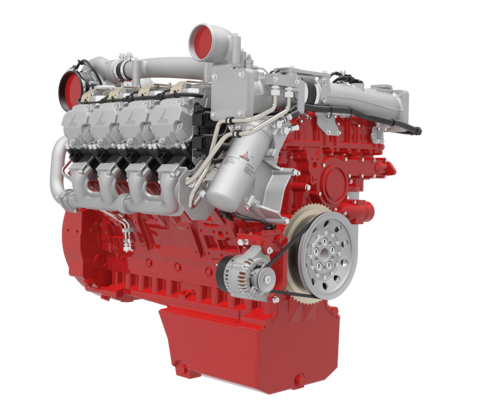

8-Cylinder Engine
TCD 16.0 V8 (Agri)

Technical data
Emission norms
US T4f, EU IV
Number of cylinders
8
Bore
132 mm
Stroke
145 mm
Displacement
15.9 l
Maximum nominal speed
2100 rpm
Power output
520 kW (1400 rpm)
Min. idling speed
600 rpm
Specific fuel consumption
202 g/kWh
Length
1150 mm
Width
945 mm
Height
1170 mm
Weight
1260 kg

Key Features

Engine for agricultural machinery. Water-cooled, V version (90°) 8-cylinder engine with turbocharging and charge air cooling.

  • Engine and exhaust aftertreatment (EAT) are optimised for highest total system efficiency and thus ensure minimised fuel and total operating costs.
  • Thanks to SCR technology, the cooler sizes do not need to be enlarged in comparison with Tier 3 engines. Fuel consumption is reduced. The exhaust gas aftertreatment system is maintenance free.
  • Consistent installation and connection dimensions of the engine facilitate the changeover of existing installations to the next stage of the emission legislation.
  • 100% power take-off at flywheel and front end and additionally up to three PTO drives with a total torque of up to 520 Nm.
  • The engine has a modular exhaust aftertreatment system (EAT) with components from the DVERT® kit and optional configuration variants. This means a high flexibility in machine integration for the OEM.
  • The extremely compact engine design and customer friendly accesoires reduce the installation costs and increase the number of applications.
  • The engine is also available as a flat version for extremely compact installations.
  • The powerful Common Rail injection system and the electronic engine control (EMR 4) with intelligent link to the drive management ensure optimum engine performance at low fuel consumption.
  • Best cold starting performance even under extreme conditions.
  • The engine meets the requirements of the EU Stage IIIB & IV and US EPA Tier 4 interim & Tier 4 with SCR. A variant without EAT is available as an option for less regulated markets.
