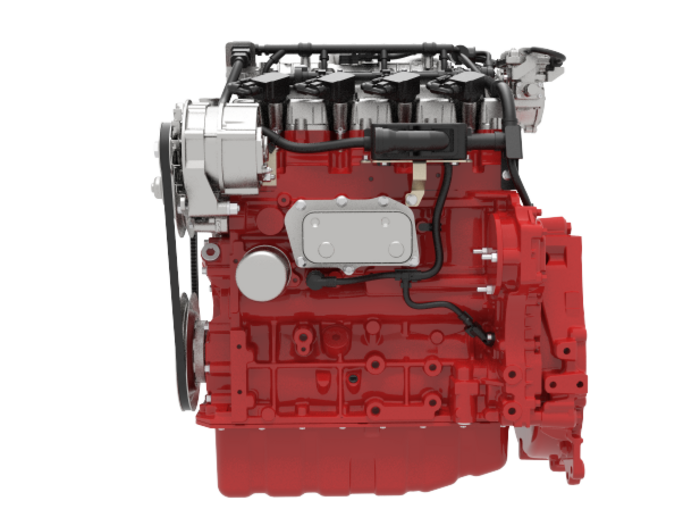

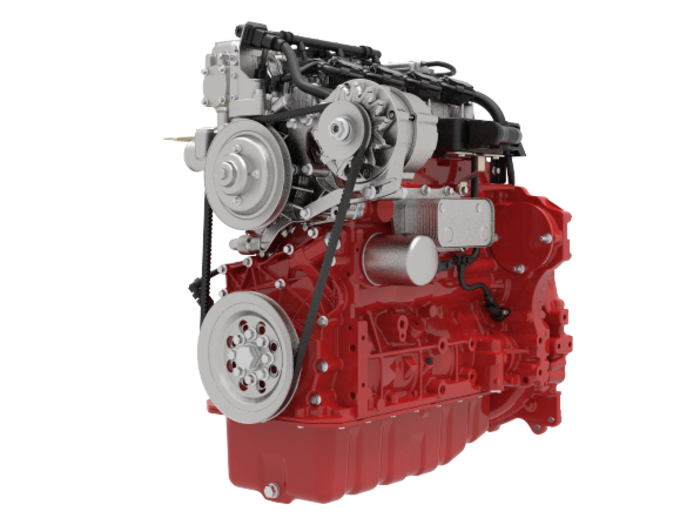

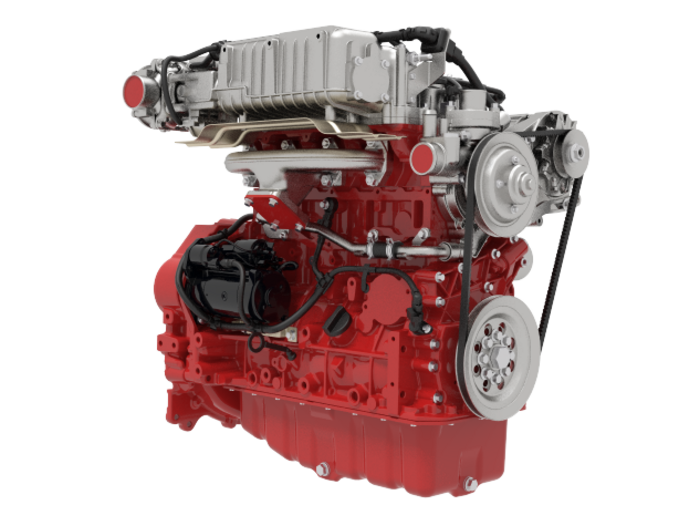

DEUTZ G 2.2/2.9 - GAS/GASOLINE ENGINES
Low emission
meets
top performance
Water-cooled gas and gasoline engines from DEUTZ combine maximum performance, environmental friendliness and versatility. Based on the successful 2.2/2.9 series, they offer outstanding performance and efficiency for demanding industrial applications.
New standard for demanding applications
The engines are equipped with a fully electronically controlled gas/gasoline system that ensures stoichiometric combustion. Thanks to lambda control and knock sensors, the gas/gasoline engines achieve the lowest emissions and best performance at the same time.
KEY FEATURES AT A GLANCE
-
Robust engine design for demanding industrial applications based on the successful 2.9 series.
- Full electonic controlled LPG gas system, stoichiometric combustion, closed loop lambda control and knocking sensors for lowest emissions and best performance at the same time.
- Open EAT system (3 way catalyst) means 100% machine availability even under lowest load duty cycles.
- Same foot print and major installation interfaces as diesel engines TCD 2.2/2.9 for ease of installation in diesel and gas/gasoline powered machines.
- Up to 1000 h oil change intervals, maintenance-free valve train and optionally service-friendly multi-V belt drive result in low maintenance cost and increased machine availability.
- The extremely compact engine design and customer friendly accessories reduce the installation cost and increase the number of applications.
- 100% power take-off at flywheel and front end; additional side PTO drive with up to 120 Nm for the mounting of hydraulic pumps.
- Compact 3-way catalyst for EU Stage V and EPA Tier 2 compliance.
KEY FACTS AT A GLANCE
| TECHNICAL DATA | G 2.2 | G 2.9 |
|---|---|---|
| Fuels | LPG, CNG | LPG, Gasoline, Bi-Fuel (LPG/Gasoline) |
| Emission norms | US T2, EU V | US T2, EU V |
| Number of cylindersS | 3 | 4 |
| Bore | 92 mm | 92 mm |
| Stroke | 110 mm | 110 mm |
| Displacement | 2.2 l | 2.9 l |
| Maximum nominal speed | 2800 rpm | 2800 rpm |
| Power output * | 41.5 kW | 54 kW |
| at speeds | 2800 rpm | 2800 rpm |
| Max. torque * | 160 Nm | 215 Nm |
| at speeds | 1600 rpm | 1600 rpm |
| Min. idling speed | 900 rpm | 900 rpm |
| Length | 576 mm | 678 mm |
| Width | 647 mm | 572 mm |
| Height | 747 mm | 734 mm |
| Weight | 208 kg | 220 kg |
* Performance depending on the selected fuel type.
Our expertise, your benefit
The same connection dimensions and main installation interfaces as the DEUTZ 2.2/2.9 series diesel engines enable easy installation in diesel and gas/gasoline-powered equipment.
Our quality processes ensure that every product meets the high DEUTZ standards and that customers receive reliable, world-class solutions.
Our gas/gasoline engines focus on robustness and ease of maintenance. With oil change intervals of up to 1000 hours, a maintenance-free valve train and optional poly-V-belt drive, they offer low maintenance costs and high device availability.
Experience a motor design that combines compactness with modularity. Our customer-oriented system of optional attachments reduces installation costs and expands applications. With 100% power take-off on the flywheel, the front end and a side power take-off, our motors offer maximum flexibility.
Find your suitable solution as well as all technical information
With the DEUTZ engine finder you can easily filter from all our engine variants by application, power, emission or series and get a suitable engine selection.
Find your engine
